Network CCTV system
Coaxial cable communication
This is a network-based CCTV system that communicates over a coaxial cable.
It can be used to upgrade outdated analog systems to network systems without having to replace the communication cables of the original system.
Basic components
-
Camera Types
IP Explosion-proof Cameras
-
Transmission Media
Coaxial cables
-
Transmit Side
IP Over Coax Converters
-
Receiving Side
IP Over Coax Converters
-
Recording Systems
NVRs
-
Display
Monitors
-
VMS Systems
NVR systems
Here is an example
A list of core equipment purchased for a network CCTV project.
ITEM
UNIT
SGX-EX-SH
Explosion-proof Junction Boxes
CNEX
IP66
4 × G1/2" conduit entries
NCR200
IP Over Coax Converters
NVR316-64R-B
64-channel Network Video Recorders
Related Products
Explosion-proof Camera
SGC-Ex-SH
Learn more
SGC-Ex-SH
Learn more
Explosion-proof IR PTZ Camera
SGT-Ex-S2DB
Learn more
SGT-Ex-S2DB
Learn more
Explosion-proof Junction Box
SGX-EX-SH

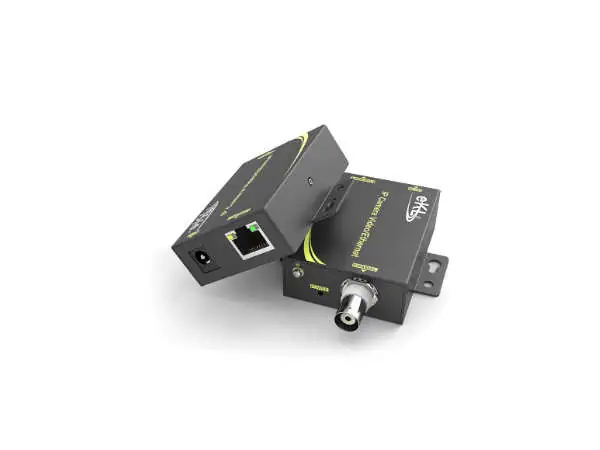

IP Over Coax Converter
