- Notes:
-
*NOT AVAILABLE in the Zone 0.
-
**NOT AVAILABLE in the Class I environment.
If you need Mining Explosion Proof Cameras, see defendex-proof.com/src/products/mining-explosion-proof-camera-kba127f.html. -
1
The IP68 waterproof test comes from a designated laboratory of the IEC issuing authority.
Test standard: IEC 60529:1989+A1:1999+A2:2013
-
2
Testing of the flame-proof infrared lamp:
- a. Irradiation Distance: There is no national standard for the radiation distance of explosion-proof infrared lamps. The overall quality is judged based on the distance it's placed from the Zebra Board. The effective distance of the same explosion-protected infrared lamp varies greatly in different night vision systems. For this reason, a separate, targeted test evaluation must be performed for the effective distance.
- b. Test Conditions: Ambient illumination from flameproof infrared lamps should be less than 0.001 lux (averaged at 550 nm) and weather visibility should be greater than 10 km.
- c. Test Equipment: A lens with F=1.5~2.0, a black and white camera with low illumination (0.1Lux), a one-meter zebra board, power supply, display device, etc.
- d. Test Method: After debugging the camera monitoring system, turn on the flameproof infrared lamp and illuminate the zebra board at a distance of 10 meters from the front. After adjusting the image clearly, move the zebra board back until it becomes invisible. At this point, the effective distance X0.6 from the camera to the zebra board is the effective distance of the flameproof infrared lamp for this equipment.
-
*
Disclaimer: The product pictures and content on this page are for illustrative purposes only. Please note that the actual product may differ from the pictures displayed on the page in terms of appearance, color, dimensions, and size, among other features. Additionally, the numbers provided on this page are theoretical and were obtained under controlled test environments (please refer to each specific description for details). As a result, the actual performance of the product may vary due to individual product differences (which may arise from slight manufacturing variations), software versions, use conditions, and environmental factors. Therefore, it is recommended that you refer to the actual experience of the product.
At Defend, we are constantly striving to provide the most accurate and up-to-date product information, specifications, and characteristics. To achieve this goal, we may adjust and revise the text descriptions, picture effects, and other content on this page in real-time to match the actual performance, specifications, index, parts, and other information of the product. Please note that in case of any necessary page modifications or adjustments, no special notice will be given. We encourage you to check the product page at www.defendex-proo.com for the latest updates.
IR Explosion-proof Camera
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC (85°C) Db

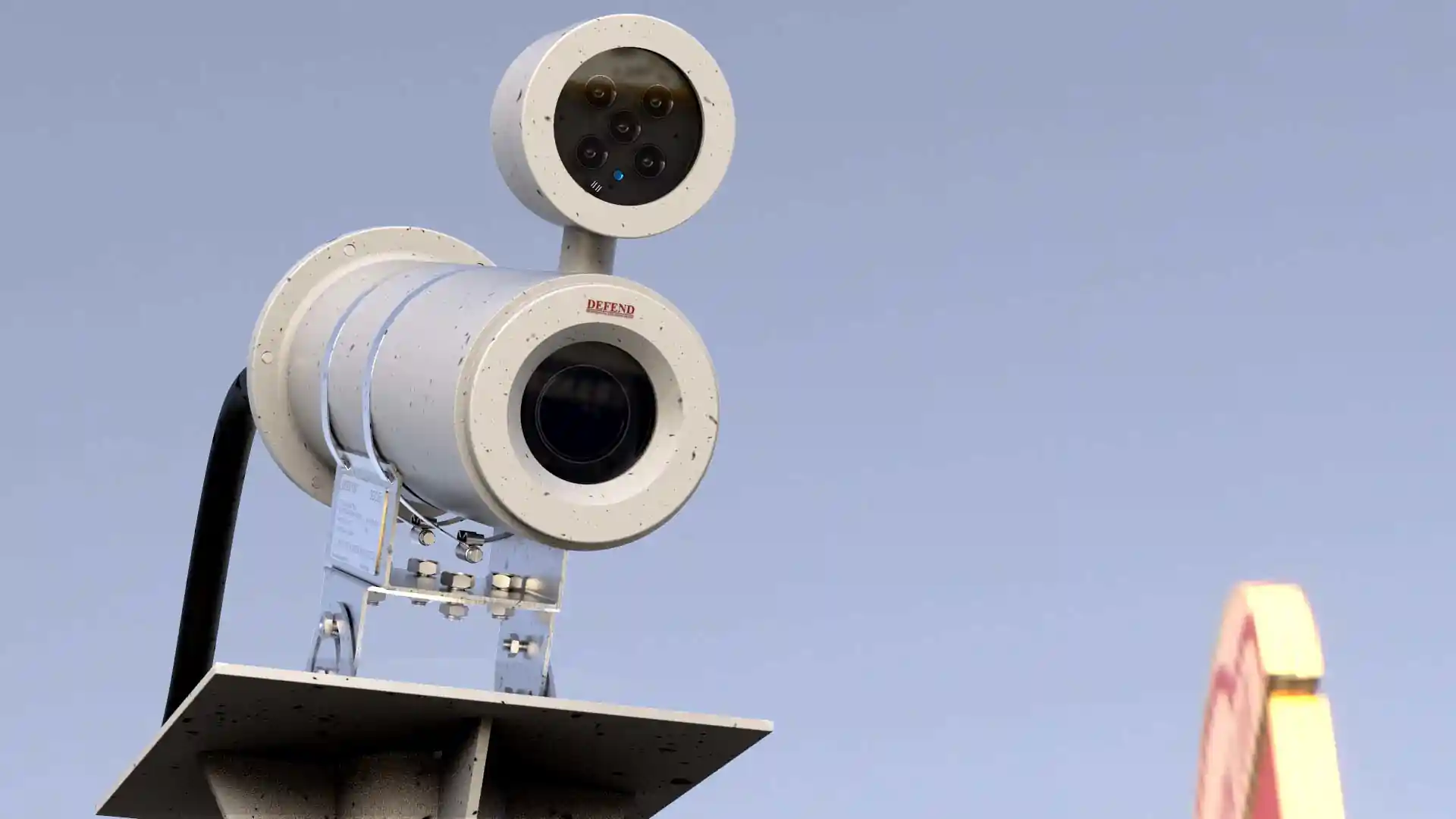

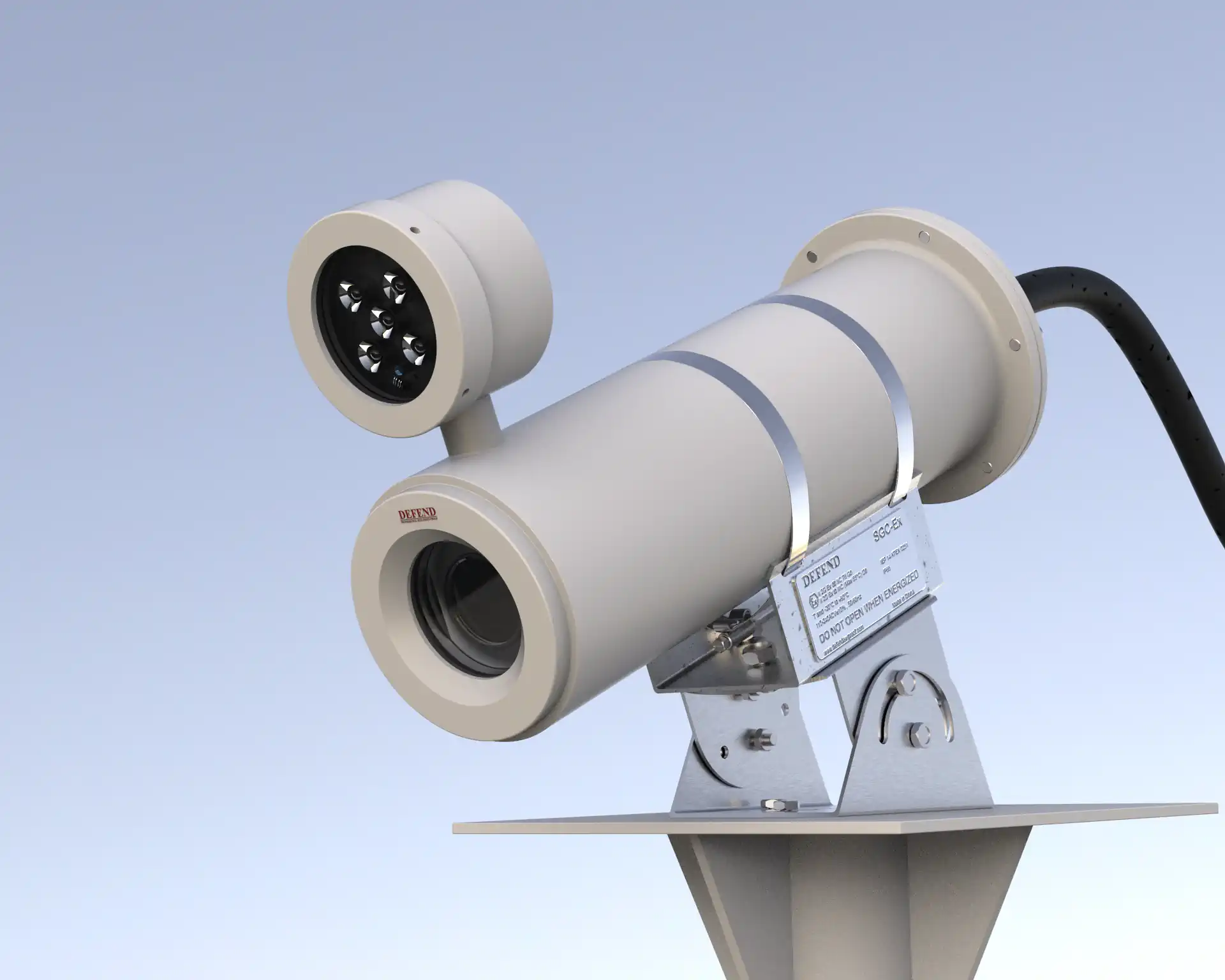

The IR Explosion-proof Cameras SGC-EX-SH-I operates in hazardous areas where flammable gases and vapors are present. It features night vision for reliable, high-quality video in low-light environments.
SGC-EX-SH-I
IR Explosion-proof Cameras for Hazardous Environments
SGC-EX-SH-I designed to operate in hazardous areas, specifically Zones 1, 21
Explosion Proof Camera Housing
ATEX certified.
Operate safely in explosive gas environments such as hydrogen, acetylene, ethylene, etc.
IP68 Enclosure ratings
The highest level of waterproof protection
T6 at 60°C
T6 is the highest rated housing surface temperature in the ATEX directive.

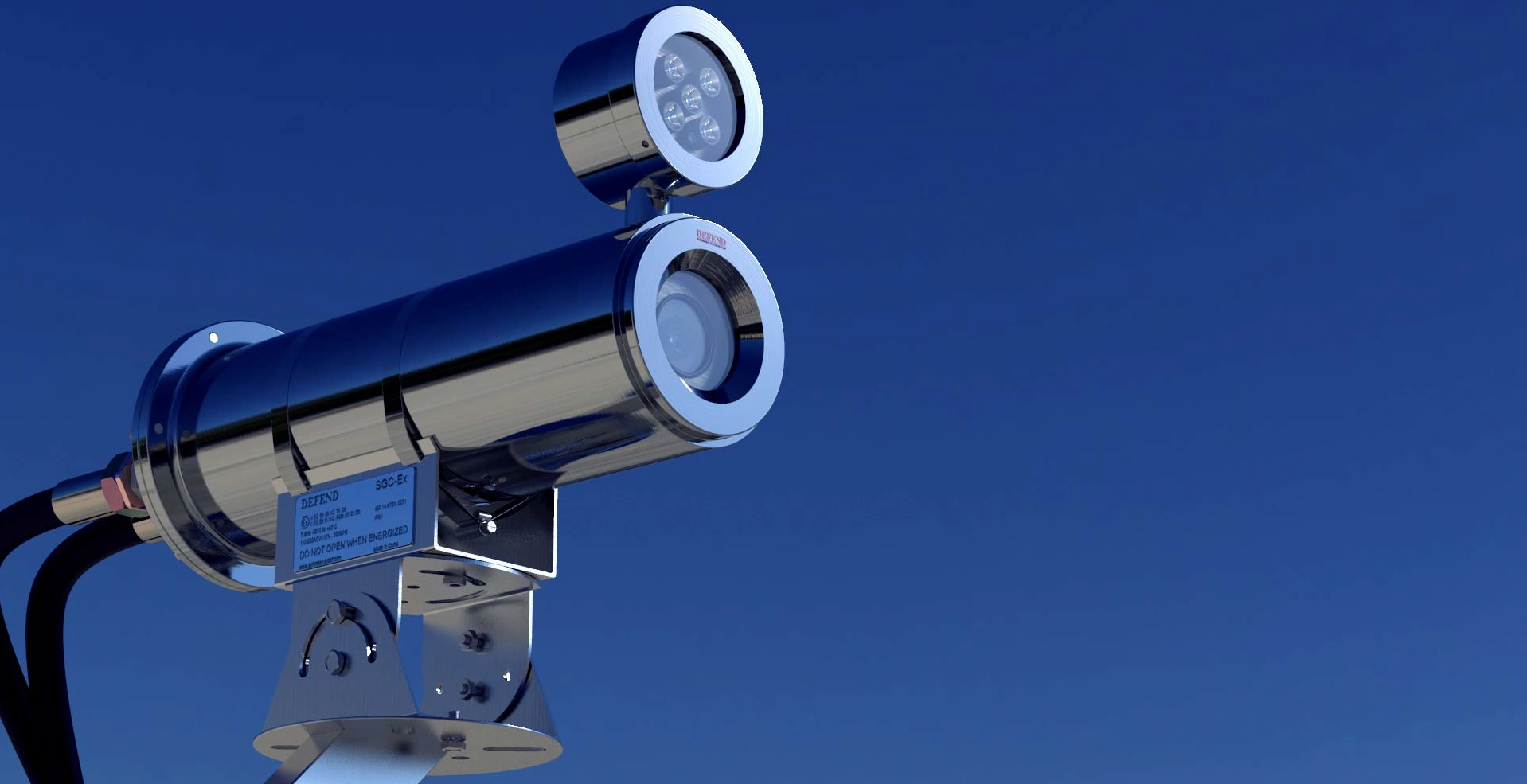

Resists corrosion
316L stainless steel housing resists corrosion in corrosive gas environments.
SGC-EX-SH-I applies to zones 1 and 21
With its rugged construction and durable design, the SGC-EX-SH-I can withstand harsh environmental conditions, making it ideal for use in industries such as oil and gas, and chemical processing.
- Oil and gas industry
- Refineries
- Chemical plants
- Grain silos
- Food processing
- Pharmaceuticals
- Military
- Defense
High performance explosion proof cameras
With its advanced video technology and robust construction, you can trust this camera to deliver outstanding performance and reliability in even the most extreme conditions.
4 megapixel resolution.
The SGC-EX-SH-I has a resolution of 2560 x 1440 pixels. This provides clearer and more detailed images even in harsh environments.

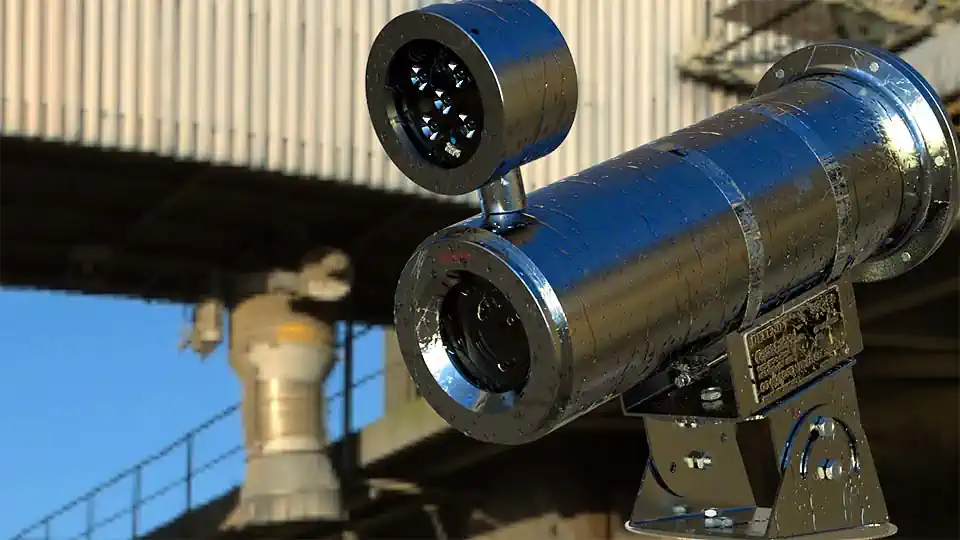

Night vision
The SGC-EX-I has built-in high power infrared illuminator, infrared distance up to 60 meters. provide clear and reliable surveillance in even the darkest and most hazardous environments.
Intelligent analysis
The SGC-EX-SH-I has intelligent analysis capabilities that allow it to detect and analyze potential safety hazards or security threats, such as unauthorized access or object intrusion. This can help prevent accidents and keep workers safe in hazardous environments.
Specifications
| General | |
|---|---|
| Casing |
IP68 - rated Electropolished 316L stainless steel casing for maximum Color: Brushed stainless steel |
| Connector | Two G 3/4" conduit entries |
| Casing's window | Thermally tempered glass |
| IR illuminator | IR range up to 60 meters |
|
Working temperature |
-20 °C to 60 °C |
|
Operating conditions |
Humidity ≤ 95% RH (+25 °C) Atmospheric Pressure 80-106 kPa |
|
Power consumption |
AC 110-220 V ± 10% 80 W Max |
| Dimensions | 385 × 137 × 232mm |
| Unit weight | 8 kg |
| Accessories | Wall mounting bracket |
| Warranty | Defend 3-year warranty |
| Network | |
|---|---|
| Ethernet | 10 Base-T, /100 Base-TX, RJ45 Connector |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
|
Compatible integration |
ONVIF (Profile S, Profile G, Profile T) |
| Camera | |
|---|---|
| Image sensor | 1/2.8" Progressive Scan CMOS |
|
Max. Resolution |
4 MP (2592 × 1520) |
| Lens |
30x optical zoom, 16x digital zoom f=5.3 mm - 159 mm, F1.6 - F4.3 Angle of view: H: 59.8° - 2.3° |
|
Min. illumination |
Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON) |
| S/N Ratio | 55 dB |
|
Video compression |
H.265 / H.264 / MJPEG |
| Intelligence | |
|---|---|
| Smart function |
Support face, human and vehicle detection and capture |
|
Motion detection |
Support |
|
Privacy masking |
Support |
|
Intelligent analysis |
Intrusion Single line crossing Double line crossing Loitering Wrong way Illegal Parking Accurate vehicle and human detection People counting |
Accessories
Wall bracket
SGA-S512
Universal Joint
SGA-S909
Flexibility pipe
SGA-EX-BNG
General-purpose Explosion-proof cameras
The SGC-EX-SH-I is widely used in a variety of different types of CCTV systems
