- Notes:
-
*NOT AVAILABLE in the Zone 0.
-
1
The IP66 waterproof test comes from a designated laboratory of the ATEX issuing authority.
Test standard: IEC 60529:1989+A1:1999+A2:2013
-
2
Testing of the flame-proof infrared lamp:
- a. Irradiation Distance: There is no national standard for the radiation distance of explosion-proof infrared lamps. The overall quality is judged based on the distance it's placed from the Zebra Board. The effective distance of the same explosion-protected infrared lamp varies greatly in different night vision systems. For this reason, a separate, targeted test evaluation must be performed for the effective distance.
- b. Test Conditions: Ambient illumination from flameproof infrared lamps should be less than 0.001 lux (averaged at 550 nm) and weather visibility should be greater than 10 km.
- c. Test Equipment: A lens with F=1.5~2.0, a black and white camera with low illumination (0.1Lux), a one-meter zebra board, power supply, display device, etc.
- d. Test Method: After debugging the camera monitoring system, turn on the flameproof infrared lamp and illuminate the zebra board at a distance of 10 meters from the front. After adjusting the image clearly, move the zebra board back until it becomes invisible. At this point, the effective distance X0.6 from the camera to the zebra board is the effective distance of the flameproof infrared lamp for this equipment.
-
*
Disclaimer: The product pictures and content on this page are for illustrative purposes only. Please note that the actual product may differ from the pictures displayed on the page in terms of appearance, color, dimensions, and size, among other features. Additionally, the numbers provided on this page are theoretical and were obtained under controlled test environments (please refer to each specific description for details). As a result, the actual performance of the product may vary due to individual product differences (which may arise from slight manufacturing variations), software versions, use conditions, and environmental factors. Therefore, it is recommended that you refer to the actual experience of the product.
At Defend, we are constantly striving to provide the most accurate and up-to-date product information, specifications, and characteristics. To achieve this goal, we may adjust and revise the text descriptions, picture effects, and other content on this page in real-time to match the actual performance, specifications, index, parts, and other information of the product. Please note that in case of any necessary page modifications or adjustments, no special notice will be given. We encourage you to check the product page at www.defendex-proo.com for the latest updates.

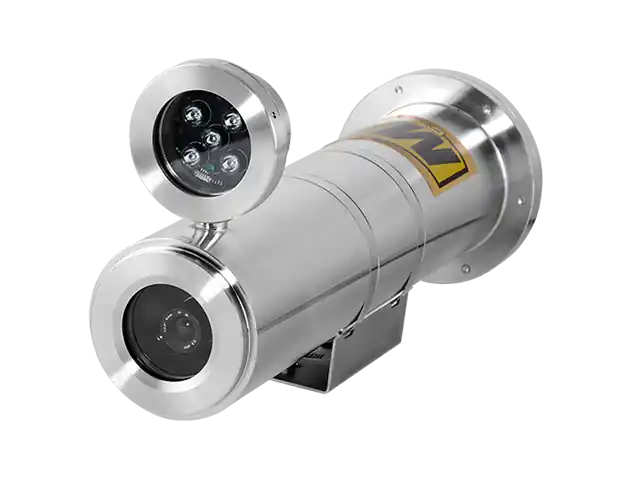

KBA127-IF
Explosion-proof Cameras for Class I
Explosion proof Camera Housing
MA certified.
Coal mine explosion proof cameras.
IP68 Enclosure ratings
IP68 is the highest level of waterproof protection.
Resists corrosion
316L stainless steel housing resists corrosion in corrosive gas environments.
Specifications
| General | |
|---|---|
| Casing |
IP68 - rated Electropolished 316L stainless steel casing for maximum Color: Brushed stainless steel |
| Connector | Two G 3/4" conduit entries |
| Casing's window | Thermally tempered glass |
| IR illuminator | IR range up to 60 meters |
|
Working temperature |
-30 °C to 70 °C |
|
Operating conditions |
Humidity ≤ 95% RH (+25 °C) Atmospheric Pressure 80-106 kPa |
|
Power consumption |
AC 127 V ≤12 W |
| Dimensions | 484 × 112 × 239 mm |
| Unit weight | 10 kg |
| Accessories | Wall mounting bracket |
| Warranty | Defend 3-year warranty |
| Network | |
|---|---|
| Ethernet | 10 Base-T, 100 Base-TX, RJ45 Connector |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
|
Compatible integration |
ONVIF (Profile S, Profile G, Profile T) |
| Camera | |
|---|---|
| Image sensor | 1/2.9" SONY CMOS |
|
Max. Resolution |
1080 p /60(50) fps,1080 p / 30(25) fps |
| Lens | Fixed 4 mm |
|
Min. illumination |
Color: 0.001 Lux @ ( F1.6, AGC ON), B/W: 0.0001 Lux @ ( F1.6, AGC ON) |
| S/N Ratio | 55 dB |
|
Video compression |
H.265 / H.264 / MJPEG |
| Optical transmission | |
|---|---|
| Type | Single-channel single fiber cable |
|
Fiber interface |
SC |
|
Emission wavelength |
1310nm (Tx) / 1550 nm (Rx) |
|
Optical output power |
-8 dBm - 0 dBm |
|
Transmission range range |
0-25 km |
Accessories
Wall bracket
SGA-S512
Universal Joint
SGA-S909
Flexibility pipe
SGA-EX-BNG
General-purpose Explosion-proof cameras
The KBA127-IF is widely used in a variety of different types of CCTV systems
