- Notes:
-
*NOT AVAILABLE in the Zone 0.
-
**
The IP68 waterproof test comes from a designated laboratory of the MA issuing authority.
Test standard: IEC 60529:1989+A1:1999+A2:2013
-
***
Disclaimer: The product pictures and content on this page are for illustrative purposes only. Please note that the actual product may differ from the pictures displayed on the page in terms of appearance, color, dimensions, and size, among other features. Additionally, the numbers provided on this page are theoretical and were obtained under controlled test environments (please refer to each specific description for details). As a result, the actual performance of the product may vary due to individual product differences (which may arise from slight manufacturing variations), software versions, use conditions, and environmental factors. Therefore, it is recommended that you refer to the actual experience of the product.
At Defend, we are constantly striving to provide the most accurate and up-to-date product information, specifications, and characteristics. To achieve this goal, we may adjust and revise the text descriptions, picture effects, and other content on this page in real-time to match the actual performance, specifications, index, parts, and other information of the product. Please note that in case of any necessary page modifications or adjustments, no special notice will be given. We encourage you to check the product page at www.defendex-proo.com for the latest updates.

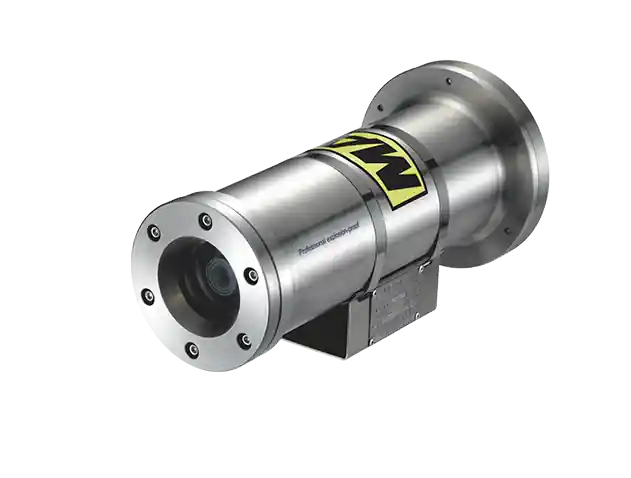

Mining Explosion-proof camera
The KBA127(A)-S05 is designed for use in Class I hazardous areas and is primarily used in the mining industry.
KBA127(A)-S05
Explosion-proof Cameras for Class I
Explosion Proof Camera Housing
MA certified.
Coal mine explosion proof cameras.
IP68 Enclosure ratings
IP68 is the highest level of waterproof protection.
Resists corrosion
316L stainless steel housing resists corrosion in corrosive gas environments.
Specifications
| General | |
|---|---|
| Casing |
IP68 - rated Electropolished 316L stainless steel casing for maximum Color: Brushed stainless steel |
| Connector | Two G 3/4" conduit entries |
| Casing's window | Thermally tempered glass |
|
Working temperature |
-30°C to 70°C |
|
Operating conditions |
Humidity ≤95% RH (+25°C) Atmospheric Pressure 80-106kPa |
|
Power consumption |
AC127V ≤12W |
| Dimensions | 484×112×133mm |
| Unit weight | 9 kg |
| Accessories | Wall mounting bracket |
| Warranty | Defend 3-year warranty |
| Network | |
|---|---|
| Ethernet | 10 Base-T, /100 Base-TX, RJ45 Connector |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP |
|
Compatible integration |
ONVIF (Profile S, Profile G, Profile T) |
| Camera | |
|---|---|
| Image sensor | 1/2.9" SONY CMOS |
|
Max. Resolution |
1080p/60(50)fps,1080p/30(25)fps |
| Lens | Fixed 4mm |
|
Min. illumination |
Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON) |
| S/N Ratio | 55 dB |
|
Video compression |
H.265/H.264/MJPEG |
| Optical transmission | |
|---|---|
| Type | Single-channel single fiber cable |
|
Fiber interface |
SC |
|
Emission wavelength |
1310nm(Tx)/1550nm(Rx) |
|
Optical output power |
-8dBm-0dBm |
|
Transmission range range |
0-25km |
