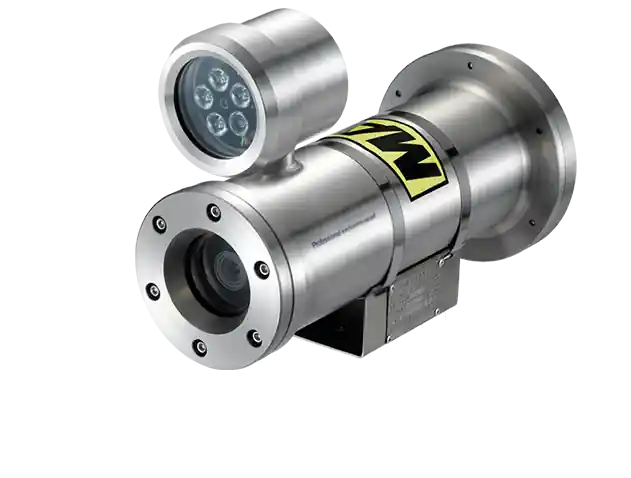

Mining IR Explosion-proof camera

Models: KBA127(A)-SR05
Marking: Ex d I Mb

The KBA127(A)-SR05 is designed for use in Class I hazardous areas and is primarily used in the mining industry.

Color

GET A QUOTE

KBA127(A)-SR05

Explosion-proof Cameras for Class I

Explosion Proof Camera Housing

MA certified.

Coal mine explosion proof cameras.

IP68 Enclosure ratings

IP68 is the highest level of waterproof protection.

Resists corrosion

316L stainless steel housing resists corrosion in corrosive gas environments.

Specifications

General
Casing

IP68 - rated

Electropolished 316L stainless steel casing for maximum

Color: Brushed stainless steel
Connector Two G 3/4" conduit entries
Casing's window Thermally tempered glass
IR illuminator IR range up to 60 meters

Working

temperature

 -30°C to 70°C

Operating

conditions

Humidity ≤95% RH (+25°C)

Atmospheric Pressure 80-106kPa

Power

consumption

AC127V

≤12W
Dimensions 430×147×252mm
Unit weight 11 kg
Accessories Wall mounting bracket
Warranty Defend 3-year warranty
Camera
Image sensor 1/2.9" SONY CMOS

Max.

Resolution

 1080p/60(50)fps,1080p/30(25)fps
Lens Fixed 4mm

Min.

illumination

Color: 0.001 Lux @ (F1.6, AGC ON),

B/W: 0.0001 Lux @ (F1.6, AGC ON)
S/N Ratio 55 dB

Video

compression

 H.265/H.264/MJPEG
Network
Ethernet 10 Base-T, /100 Base-TX, RJ45 Connector
Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP,

DNS, DDNS, RTP, RTSP, RTCP

Compatible

integration

 ONVIF (Profile S, Profile G, Profile T)

Accessories

Wall bracket

SGA-S512

weight: 1.2 kg
Dimensions: 408 × 140 × 110 mm

Universal Joint

SGA-S909

weight: 0.5 kg
Dimensions: 120 × 170.5 × 77 mm

Flexibility pipe

SGA-EX-BNG

Length: 1000 mm
Diameter: ø 15 mm
General-purpose Explosion-proof cameras

The KBA127-F is widely used in a variety of different types of CCTV systems

Network CCTV system

Twisted-pair cables

RJ-45

Get Solution Information
Network CCTV system

Coaxial cables

BNC

Get Solution Information
Network CCTV system

Fiber optic cables

SC / APC

Get Solution Information
Network CCTV system

Wi-Fi

Get Solution Information
  • Notes:
  • *
    NOT AVAILABLE in the Zone 0.
  • 1

    The IP66 waterproof test comes from a designated laboratory of the ATEX issuing authority.

    Test standard: IEC 60529:1989+A1:1999+A2:2013

  • 2

    Testing of the flame-proof infrared lamp:

    • a. Irradiation Distance: There is no national standard for the radiation distance of explosion-proof infrared lamps. The overall quality is judged based on the distance it's placed from the Zebra Board. The effective distance of the same explosion-protected infrared lamp varies greatly in different night vision systems. For this reason, a separate, targeted test evaluation must be performed for the effective distance.
    • b. Test Conditions: Ambient illumination from flameproof infrared lamps should be less than 0.001 lux (averaged at 550 nm) and weather visibility should be greater than 10 km.
    • c. Test Equipment: A lens with F=1.5~2.0, a black and white camera with low illumination (0.1Lux), a one-meter zebra board, power supply, display device, etc.
    • d. Test Method: After debugging the camera monitoring system, turn on the flameproof infrared lamp and illuminate the zebra board at a distance of 10 meters from the front. After adjusting the image clearly, move the zebra board back until it becomes invisible. At this point, the effective distance X0.6 from the camera to the zebra board is the effective distance of the flameproof infrared lamp for this equipment.
  • *
